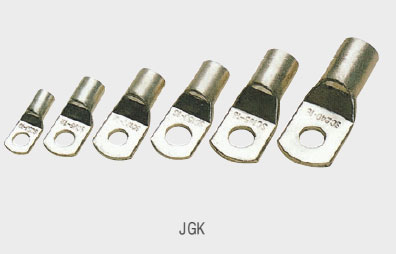

SC(JGK) SC(JGA) Import Copper Terminal
|
 |
| |
Application
|
| |
These products are suitable for the connection of copper conductors (section1.5-1000mm2 ) in power cable with electronic equiment. They are made of with higher 99.9 percent pure copper tube T2 and coated with tin. Working temperature -55℃~150℃.
|
| |

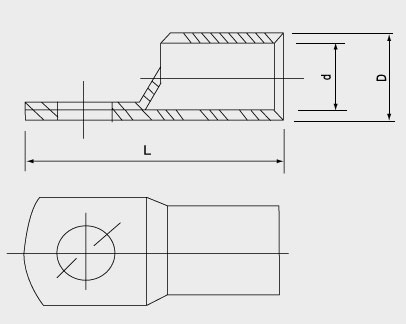

| Type |
D (mm) |
D |
d |
L (mm)
|
SC(JGK)-1.5
|
φ4.2, φ5.2
|
3.5
|
1.8
|
18
|
SC(JGK)-2.5
|
φ4.2, φ5.2, φ6.2
|
4
|
2.5
|
19
|
SC(JGK)-4
|
φ5.2, φ6.2
|
4.8
|
3.1
|
21
|
SC(JGK)-6
|
φ5.2, φ6.2, φ8.2
|
5.5
|
3.8
|
24
|
SC(JGK)-10
|
φ6.2, φ8.2
|
6.8
|
4.8
|
25.5
|
SC(JGK)-16
|
φ6.2, φ8.2, φ10.5
|
7.5
|
5.5
|
30.5
|
SC(JGK)-25
|
φ6.2, φ8.2, φ10.5
|
9
|
7
|
34
|
SC(JGK)-35
|
φ6.2, φ8.2, φ10.5, φ12.5
|
10.5
|
8.2
|
38
|
SC(JGK)-50
|
φ8.2, φ10.5, φ12.5
|
12.5
|
9.8
|
45
|
SC(JGK)-70
|
φ8.2, φ10.5, φ12.5
|
14.5
|
11.5
|
50
|
SC(JGK)-95
|
φ10.5, φ12.5
|
17.5
|
13.5
|
55.5
|
SC(JGK)-120
|
φ12.5, φ16.5
|
19.5
|
15
|
63
|
SC(JGK)-150
|
φ12.5, φ16.5
|
21
|
16.5
|
71
|
SC(JGK)-185
|
φ16.5
|
23.5
|
18.5
|
78
|
SC(JGK)-240
|
φ16.5
|
26.5
|
21
|
92
|
SC(JGK)-300
|
φ16.5, φ20.5
|
30
|
24
|
102
|
SC(JGK)-400
|
φ16.5, φ20.5
|
34
|
26.5
|
113
|
SC(JGK)-500
|
φ16.5, φ20.5
|
38
|
30
|
123
|
SC(JGK)-630
|
φ20.5
|
45
|
35
|
135
|
SC(JGK)-800
|
φ22.5
|
50
|
99
|
170
|
SC(JGK)-1000
|
φ22.5
|
56
|
44
|
200
|
|
| |
 |
 |
| |

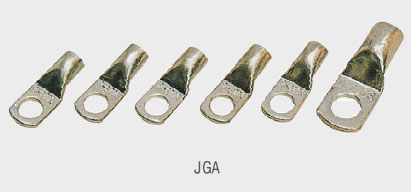

| Type |
D (mm) |
D |
d |
L (mm)
|
SC(JGA)-1.5
|
φ4.2, φ5.2
|
3.5
|
1.8
|
18
|
SC(JGA)-2.5
|
φ4.2, φ5.2, φ6.2
|
4
|
2.5
|
19
|
SC(JGA)-4
|
φ5.2, φ6.2
|
4.8
|
3.1
|
21
|
SC(JGA)-6
|
φ5.2, φ6.2, φ8.2
|
5.5
|
3.8
|
24
|
SC(JGA)-10
|
φ6.2, φ8.2
|
6.8
|
4.8
|
25.5
|
SC(JGA)-16
|
φ6.2, φ8.2, φ10.5
|
7.5
|
5.5
|
30.5
|
SC(JGA)-25
|
φ6.2, φ8.2, φ10.5
|
9
|
7
|
34
|
SC(JGA)-35
|
φ6.2, φ8.2, φ10.5, φ12.5
|
10.5
|
8.2
|
38
|
SC(JGA)-50
|
φ8.2, φ10.5, φ12.5
|
12.5
|
9.8
|
45
|
SC(JGA)-70
|
φ8.2, φ10.5, φ12.5
|
14.5
|
11.5
|
50
|
SC(JGA)-95
|
φ10.5, φ12.5
|
17.5
|
13.5
|
55.5
|
SC(JGA)-120
|
φ12.5, φ16.5
|
19.5
|
15
|
63
|
SC(JGA)-150
|
φ12.5, φ16.5
|
21
|
16.5
|
71
|
SC(JGA)-185
|
φ16.5
|
23.5
|
18.5
|
78
|
SC(JGA)-240
|
φ16.5
|
26.5
|
21
|
92
|
SC(JGA)-300
|
φ16.5, φ20.5
|
30
|
24
|
102
|
SC(JGA)-400
|
φ16.5, φ20.5
|
34
|
26.5
|
113
|
SC(JGA)-500
|
φ16.5, φ20.5
|
38
|
30
|
123
|
SC(JGA)-630
|
φ20.5
|
45
|
35
|
135
|
SC(JGA)-800
|
φ22.5
|
50
|
99
|
170
|
SC(JGA)-1000
|
φ22.5
|
56
|
44
|
200
|
|
| |
